Hot-Oiling Pumping Services

•   Hauling smaller volumes of fluid
•   Circulating and mixing large volumes of fluid
•   Heating large volumes of fluid (Frac jobs)
•   Bleeding gas pressure / fluid back to truck under pressure
•   Hydro testing
•   Hydrate pumping
•   Wellhead pumping (hot or cold)
•   Tubing
•   Casing
•   Corrosive pumping
•   Well kill jobs
•   Service rig work
•   Hot oiling (heating oil and pumping down tubing / casing, and flowline for paraffin and wax control)
•   Making steam
•   Circulating large production tanks

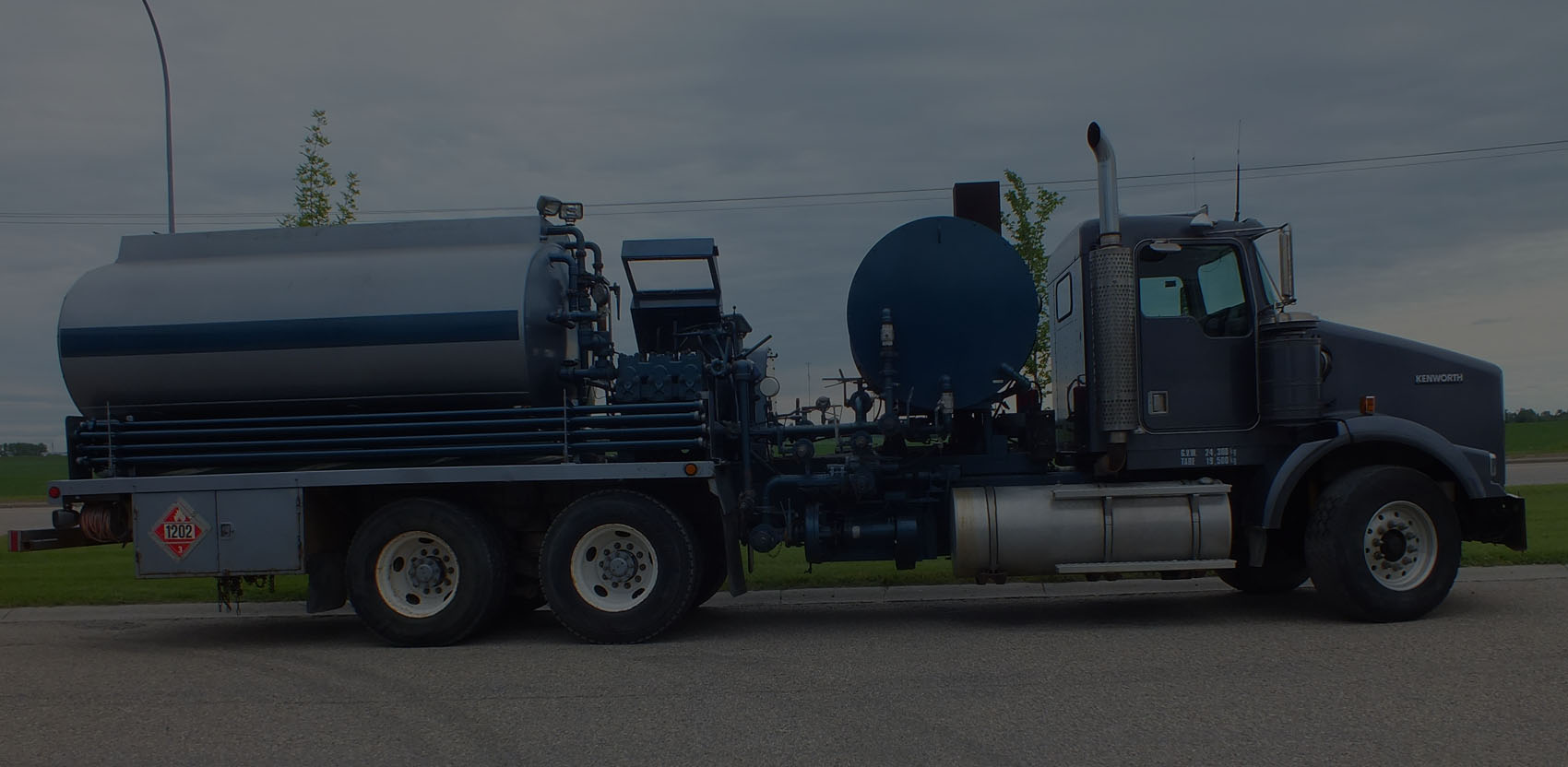

•   Specs of Unit
•   Kenworth T800 tandem truck
•   One storage tank 3 Compartments (2 compartments with 4m3 capacity each) 8m3 total volume for product being pumped
•   Third compartment used for 2000L storage for heating fuel
•   3” internal valves (stainless steel)

•   Gardner Denver TEEE triplex plunger pump (steel on steel seats)
•   2” relief valve
•   Maximum output 500L / min (1 ¼” discharge)
•   Electronic fluid counter
•   50’ of ¾” high pressure double braided hose (W.P. 5000 psi, 160L / min)
•   160’ of 1 ¼” seamless line pipe complete with chicsans (W.P. 6000 psi)
•   3” T&E gear pump (positive displacement) for loading / unloading and sucking back on lines
•   3” x 2” mission centrifugal pump for triplex charge, circulating and high volume output (maximum 1500L / min)
•   8 million BTU manufactured by Custom Welding heater for heating fluids (2” coil)
•   Approximately 295’ of 2” load / circulation hose) pressure rating 120 psi)
•   Approximately 35’ of 2” vent hose
•   High pressure fittings to accommodate ½”to 3” NPT, including EUE threads
•   Low pressure fittings to accommodate ½” to 4” NPT
•   C-12 Cat Engine 380HP 18SP Fuller
•   20K Front Axle
•   46K RR Axle
